Outdoor 5500 Nits P4 P5 HD LED Video Wall Panel

Shenzhen Smart Display Technology Co.,Ltd
Contact Now

Outdoor 5500 Nits P4 P5 HD LED Video Wall Panel

  • 1
  • 2
  • 3

Brand Name : Smart Display

Model Number : ST-03

Certification : CE,FCC, ROHS ,CB

Place of Origin : CHINA

MOQ : 1

Price : different price for different size

Payment Terms : T/T

Supply Ability : 3000

Delivery Time : 5-7days

Packaging Details : carton+ wooden box/flight case

name : HD Led Video Wall

Tube chip color : full color

function : Video, picture, multimedia, words, Text

apllication : indoor

Customized service : yes

Brand : Smart Display

Contact Now

Waterproof P4 P5 Giant Outdoor Led Video Wall Panel Screens Outdoor Led Display Price
Product
P4
P5.92
P8
P10
Pitch(mm)
4
5.92
8
10
Density(pixels/m2)
62500
28476
15625
10000
LED Type
SMD1921
SMD2727
SMD3535
SMD3535
Brightness(nits)
5500
5500
5500
6000
Scan Method
1/10
1/9
1/5
1/3

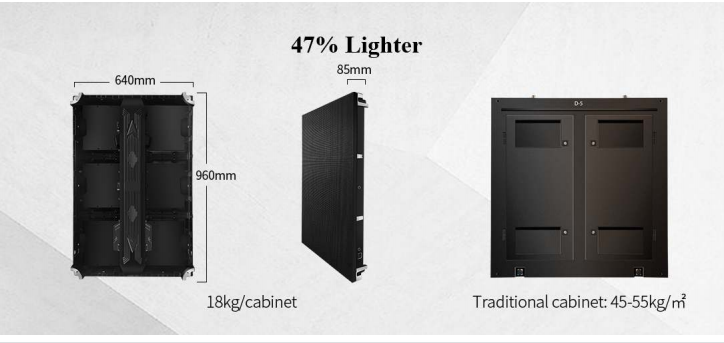

Cabinet Size(mm)
W640*H960T85mm
Module Size(mm)
320*320mm
Cabinet Material
Diecasting Aluminum
Cabinet Weight(kg)
17
17
16.5
16
Protection Level
IP65
Cabinet Maintenance
Front and Rear Service
Max Power Consumption
600w/m2
Average Power Consumption
180w/m2
Refresh Rate
1920-3840HZ
Grey Scale
16 bit
Viewing Angle
H140o,V1400 H1200 , V1200
Voltage
AC100~240V(50-63Hz)
Working Temperature
-40 oC - + 75 oC
Working Humidity
10% -- 90%RH
Color Temperature
6500-9500K
Certificationa
EMC/CE/ROHS/CCC/FCC/ISO
Outdoor 5500 Nits P4 P5 HD LED Video Wall Panel

Outdoor 5500 Nits P4 P5 HD LED Video Wall Panel

Outdoor 5500 Nits P4 P5 HD LED Video Wall Panel


Product Description
>>250x250mm module, compatible with various pitches such as PH3.91/PH4.81, high selectivity

>>High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble

>>With the upper and lower arc-side locks, the angle can be adjusted to achieve arc, round and S-shaped splicing.

>>High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 8000:1, low brightness 800~3000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios

>>Configure PWM constant current drive IC to eliminate the "caterpillar" image, low brightness and no color cast, no color block, gray scale is too smooth and no jump, no first line dark phenomenon, refresh ≥ 3840HZ, complete guarantee 16bit gray scale, Real color reproduction, high quality display

>>The flat spray mask design ensures that the entire screen plane is free of any warping, and the high-quality black protective colloid is used to perfectly realize the full-angle display of the lamp bead.

Features

1. Easy to install

2. Support front maintenance, can be curved design

3. 800-1500cd/m2 Brightness can be adjustment.

4. 5000:1 High color contrast, make the picture/Video clear and more level

5. High refresh rate (3840Hz),Using high reflesh IC, better viewing effect
